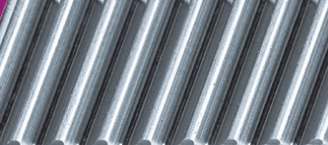

| ○ | 精度等級：DIN 7 | ○ | 齒面硬度：15~20HRC | |||
| ○ | 齒型：斜齒 | ○ | 表面處理：研磨 | |||
| ○ | 壓力角：20° | ○ | 齒面處理：精切削 | |||
| ○ | 材質：42CrMo | ○ | 熱處理：調質熱處理 | |||
| ○ | 右旋角：19° 31' 42'' | |||||
|

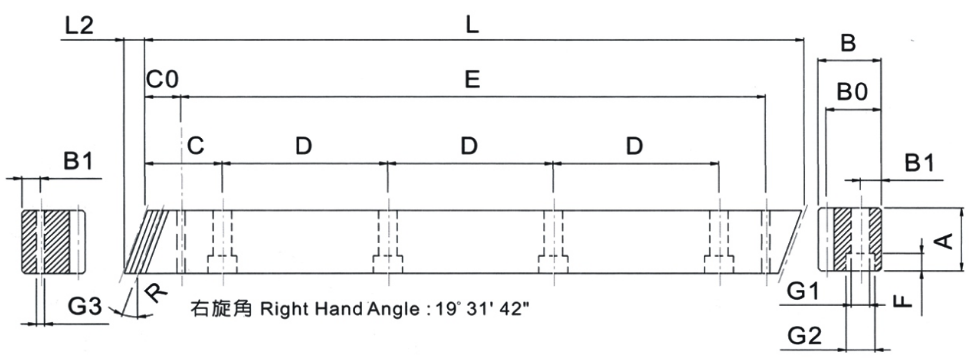

產品型號 Catalog NO. |
L | L2 |
齒數 Tooth NO . |
A | B | B0 | C | D |
孔數 Hole NO. |
B1 | G1 | G2 | F | C0 | E | G3 |
總齒距誤差 PichError/ 300mm |
| SSGH015-050 | 500.00 | 6 | 100 | 17 | 17 | 15.5 | 62.50 | 125 | 4 | 7 | 6 | 9.5 | 7 | 31.7 | 436.6 | 5.7 | 0.042 |
| SSGH015-100 | 1000.0 | 6 | 200 | 17 | 17 | 15.5 | 62.50 | 125 | 8 | 7 | 6 | 9.5 | 7 | 31.7 | 936..6 | 5.7 | 0.042 |
| SSGH020-050 | 500.00 | 8.9 | 75 | 24 | 24 | 22 | 62.50 | 125 | 4 | 8 | 7 | 11 | 7 | 31.7 | 436.6 | 5.7 | 0.044 |
| SSGH020-100 | 1000.0 | 8.9 | 150 | 24 | 24 | 22 | 62.50 | 125 | 8 | 8 | 7 | 11 | 7 | 31.7 | 936.6 | 5.7 | 0.044 |
| SSGH030-050 | 500.00 | 10.6 | 50 | 29 | 29 | 26 | 62.50 | 125 | 4 | 9 | 10 | 15 | 9 | 35.0 | 430.0 | 7.7 | 0.046 |
| SSGH030-100 | 1000.0 | 10.6 | 100 | 29 | 29 | 26 | 62.50 | 125 | 8 | 9 | 10 | 15 | 9 | 35.0 | 930.0 | 7.7 | 0.046 |
| SSGH040-050 | 506.67 | 14.2 | 38 | 39 | 39 | 35 | 62.50 | 125 | 4 | 12 | 10 | 15 | 9 | 33.3 | 433.0 | 7.7 | 0.048 |
| SSGH040-100 | 1000.0 | 14.2 | 75 | 39 | 39 | 35 | 62.50 | 125 | 8 | 12 | 10 | 15 | 9 | 33.3 | 933.4 | 7.7 | 0.048 |
| SSGH050-050 | 500.00 | 17.7 | 30 | 49 | 39 | 34 | 62.50 | 125 | 4 | 12 | 14 | 20 | 13 | 37.5 | 425.0 | 11.7 | 0.050 |
| SSGH050-100 | 1000.0 | 17.7 | 60 | 49 | 39 | 34 | 62.50 | 125 | 8 | 12 | 14 | 20 | 13 | 37.5 | 925.0 | 11.7 | 0.050 |
| SSGH060-050 | 500.00 | 20.9 | 25 | 59 | 49 | 43 | 62.50 | 125 | 4 | 16 | 18 | 26 | 17 | 37.5 | 425.0 | 15.7 | 0.055 |
| SSGH060-100 | 1000.0 | 20.9 | 50 | 59 | 49 | 43 | 62.50 | 125 | 8 | 16 | 18 | 26 | 17 | 37.5 | 925.0 | 15.7 | 0.055 |
| SSGH080-050 | 480.00 | 28.0 | 18 | 79 | 79 | 71 | 60.00 | 120 | 4 | 25 | 22 | 33 | 21 | 120.0 | 240.0 | 17.7 | 0.060 |
| SSGH080-100 | 960.00 | 28.0 | 36 | 79 | 79 | 71 | 60.00 | 120 | 8 | 25 | 22 | 33 | 21 | 120.0 | 720.0 | 17.7 | 0.060 |
